KEY FEATURES
Digital Yacht has unveiled its TriNav™ GPS160, a GPS antenna with NMEA 0183. This is a new, high-performance positioning sensor using GPS, Glonass, and the new Galileo satellite systems. Therefore, providing the best position accuracy and redundancy. Typical accuracy is better than 3 ft. Data can also be set to output at up to 18Hz for smooth plotter track displays. TriNav™ software technology also improves inaccuracy of position that could occur through spoofing and local interference. The GPS160 Seatalk model features the GPS160 GPS antenna with a SeaTalk interface.
The device has a variety of modes through field programming. This includes single GNSS operation (e.g. Galileo only) as well as output configurations such as update rate, NMEA sentence structure, etc.

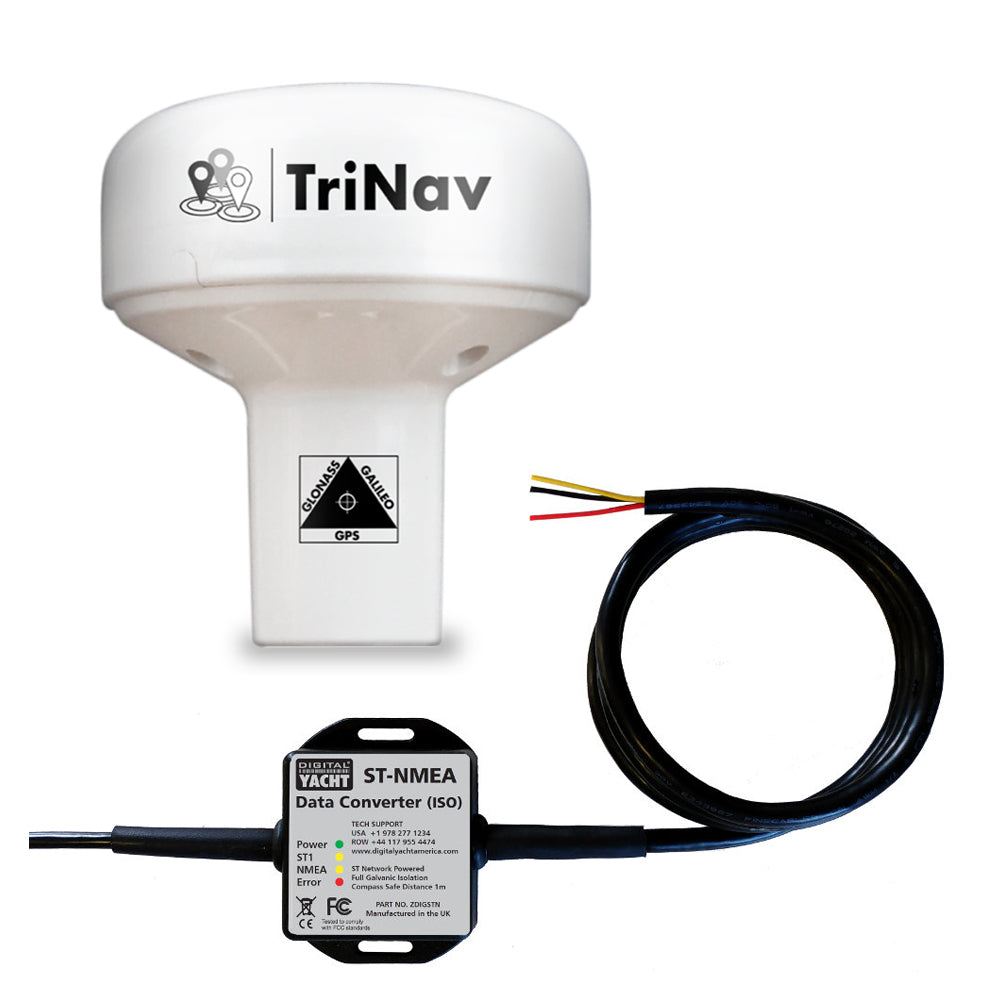

The GPS160 SeaTalk version includes the Digital Yacht SeaTalk1 to NMEA0183 converter. To therefore allow easy replacement of older Raystar sensors. Digital Yacht’s SeaTalk to NMEA (ISO) Converter is a small but powerful interface. It provides bi-directional conversion between a SeaTalk network and an NMEA0183 network. It also takes its power from the SeaTalk1 network.
Galileo
Galileo is the new global navigation satellite system (GNSS) that has been in development over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable source for position. It is now fully operational as of 2020.
There are currently 22 satellites in usable condition. This means the satellite is working and adds to the service provision. There are then 2 satellites that are in “testing” and 2 more are marked as not available. The final constellation now consists of 30 satellites (24 operational and 6 spares) as of 2020.
In addition, you can download the full info pack by clicking here.
SPECIFICATIONS
Digital Yacht has unveiled its TriNav™ GPS160, a GPS antenna with NMEA 0183. This is a new, high-performance positioning sensor using GPS, Glonass, and the new Galileo satellite systems. Therefore, providing the best position accuracy and redundancy. Typical accuracy is better than 3 ft. Data can also be set to output at up to 18Hz for smooth plotter track displays. TriNav™ software technology also improves inaccuracy of position that could occur through spoofing and local interference. The GPS160 Seatalk model features the GPS160 GPS antenna with a SeaTalk interface.
The device has a variety of modes through field programming. This includes single GNSS operation (e.g. Galileo only) as well as output configurations such as update rate, NMEA sentence structure, etc.
The GPS160 SeaTalk version includes the Digital Yacht SeaTalk1 to NMEA0183 converter. To therefore allow easy replacement of older Raystar sensors. Digital Yacht’s SeaTalk to NMEA (ISO) Converter is a small but powerful interface. It provides bi-directional conversion between a SeaTalk network and an NMEA0183 network. It also takes its power from the SeaTalk1 network.
Galileo
Galileo is the new global navigation satellite system (GNSS) that has been in development over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable source for position. It is now fully operational as of 2020.
There are currently 22 satellites in usable condition. This means the satellite is working and adds to the service provision. There are then 2 satellites that are in “testing” and 2 more are marked as not available. The final constellation now consists of 30 satellites (24 operational and 6 spares) as of 2020.
In addition, you can download the full info pack by clicking here.
SPECIFICATIONS
- 72 channel GPS, Glonass, and Galileo GNSS positioning receiver
- GPS antenna with SeaTalk interface – Supplied with Digital Yacht SeaTalk1 to NMEA0183 converter for easy replacement of older Raystar sensors
- Typically sub 3 ft accuracy thanks to TriNav™ technology –combines all satellite data for the best accuracy
- Can be configured as a dedicated GPS, Glonass, or Galileo only device
- Refined anti-spoofing algorithm for robust performance of a position and to reject interference
- User/field can select 4800, 38400, and 115200 baud operation through simple internal DIP switches
- Many formats of NMEA data output including datum information –user can configure this through internal DIP switches
- 33 ft cable
- Up to 18Hz update rate (user can select)
- Ultra-low (<20mA) power consumption at 12V DC
- Efficient system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)

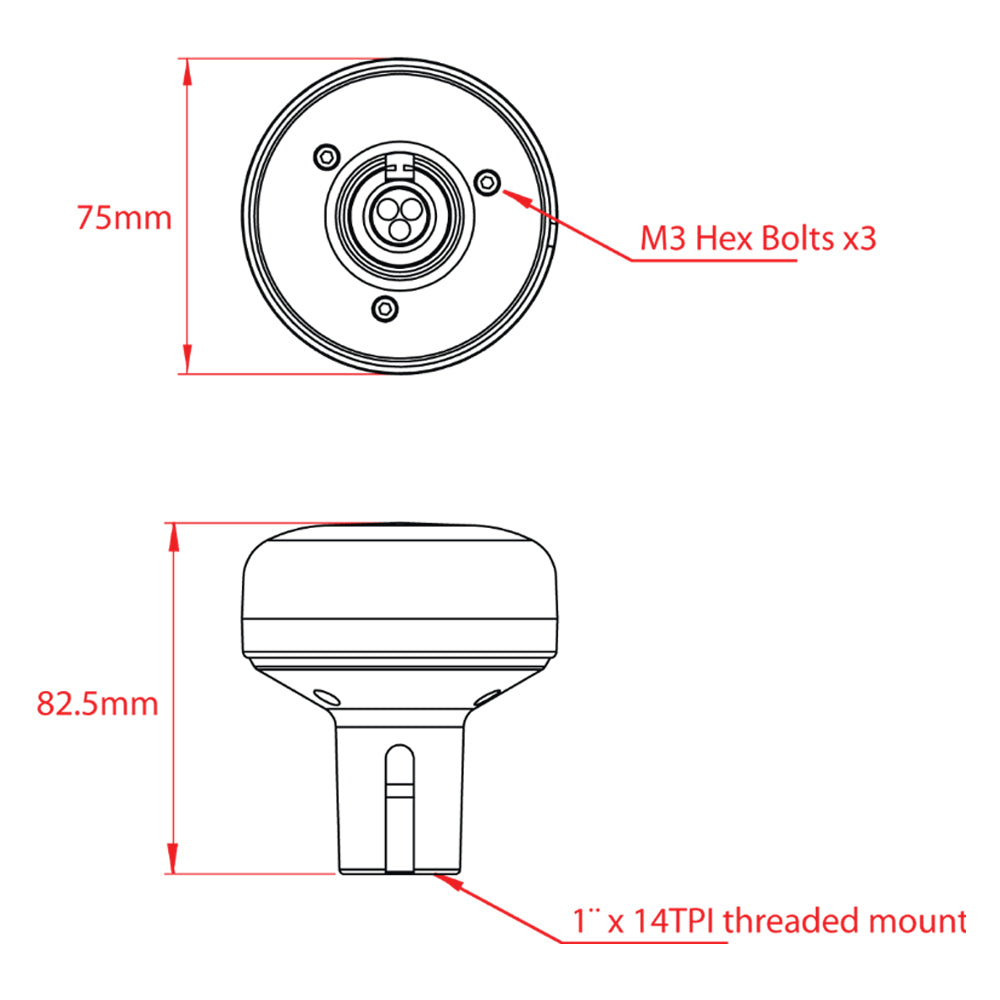

- Puck installation or fits 3rd party industry standard 1” x 14TPI threaded mount
