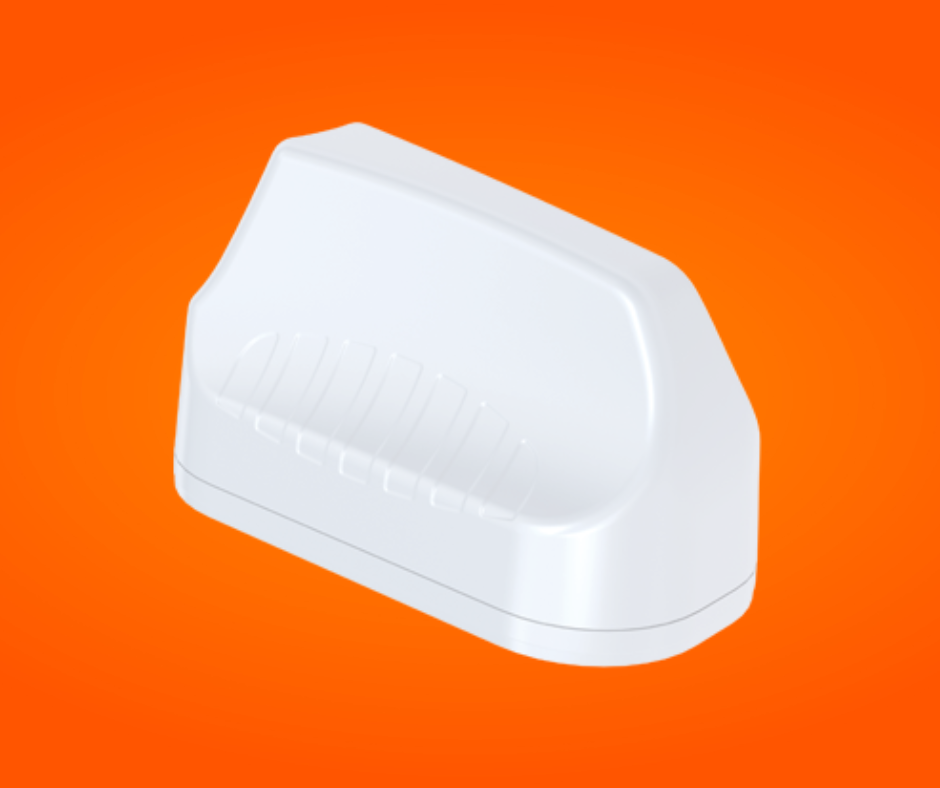

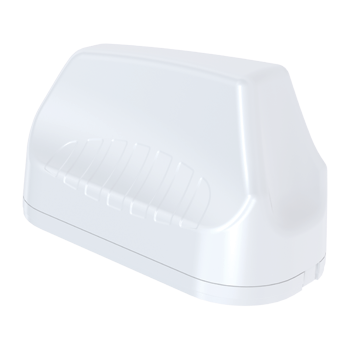

5-in-1 Transportation & Automotive Antenna
410 - 3800 MHz; 2X2 LTE (MIMO), 5.8dBi; 2X2 Wi-Fi (MIMO), 7dBi; GPS/GLONASS, 21dBi
- 5-in-1 High performance multi frequency 2G/3G/4G/LTE/5G antenna
- 2X2 MIMO LTE, 2X2 MIMO Wi-Fi & GPS / GLONASS
- Ultra-wideband, includes 450 MHz and 3.5 GHz CBRS bands
- Robust and water-resistant antenna (IP 68)
- Ideal for transportation and marine use
- Multi mounting options for easy installation
Detailed Specifications
5-in-1 Transportation & Automotive Antenna
410 - 3800 MHz; 2X2 LTE (MIMO), 5.8dBi; 2X2 Wi-Fi (MIMO), 7dBi; GPS/GLONASS, 21dBi
COAX Cable Type | HDF-195 & RTK-031 |
---|
COAX Cable Length | 2m |
---|
YouTube Videos Click here: Poynting Video
The MIMO-3-15 is a 5-in-1 high performance multi frequency antenna within a single housing, providing two cellular, two Wi-Fi and a GPS/GLONASS antenna. The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications.
The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 GHz on each antenna with 2×2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40°C. The MIMO-3-15 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation.
This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.
Click here for the product packing list/manual and drilling template.
