Pad-SX®- SX 45- Nodus Factory

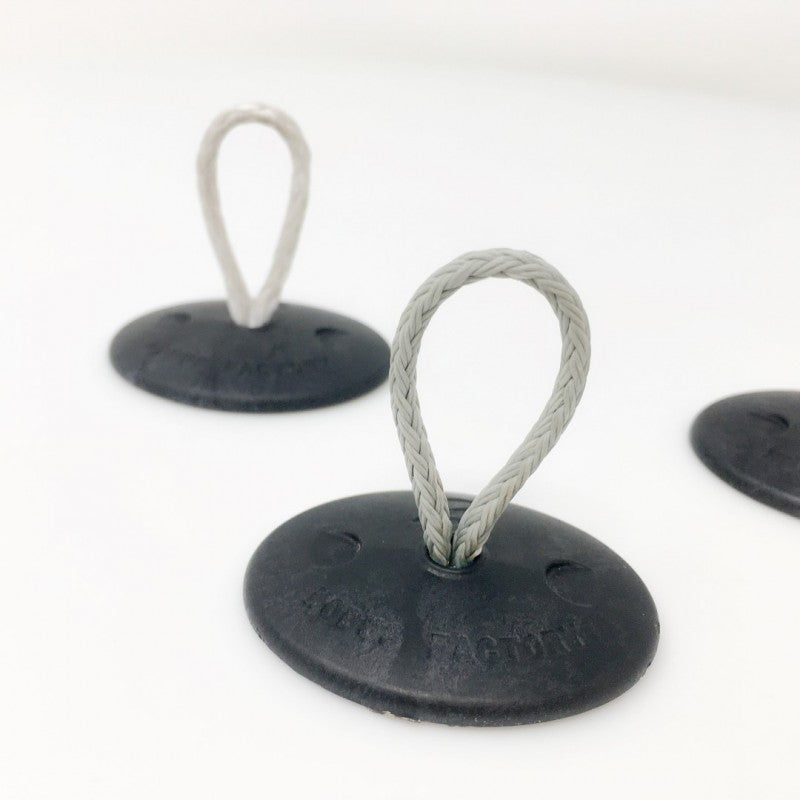

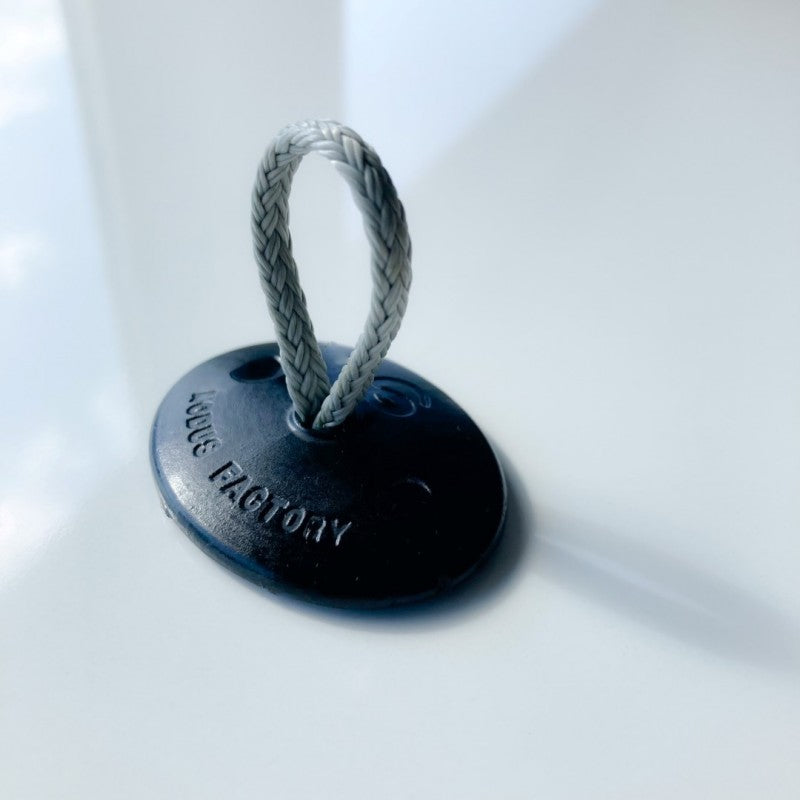

Textile pad eye round to stick on, Nodus-Padeye® SX is the only pad eye with adjustable textile Dyneema® loop.

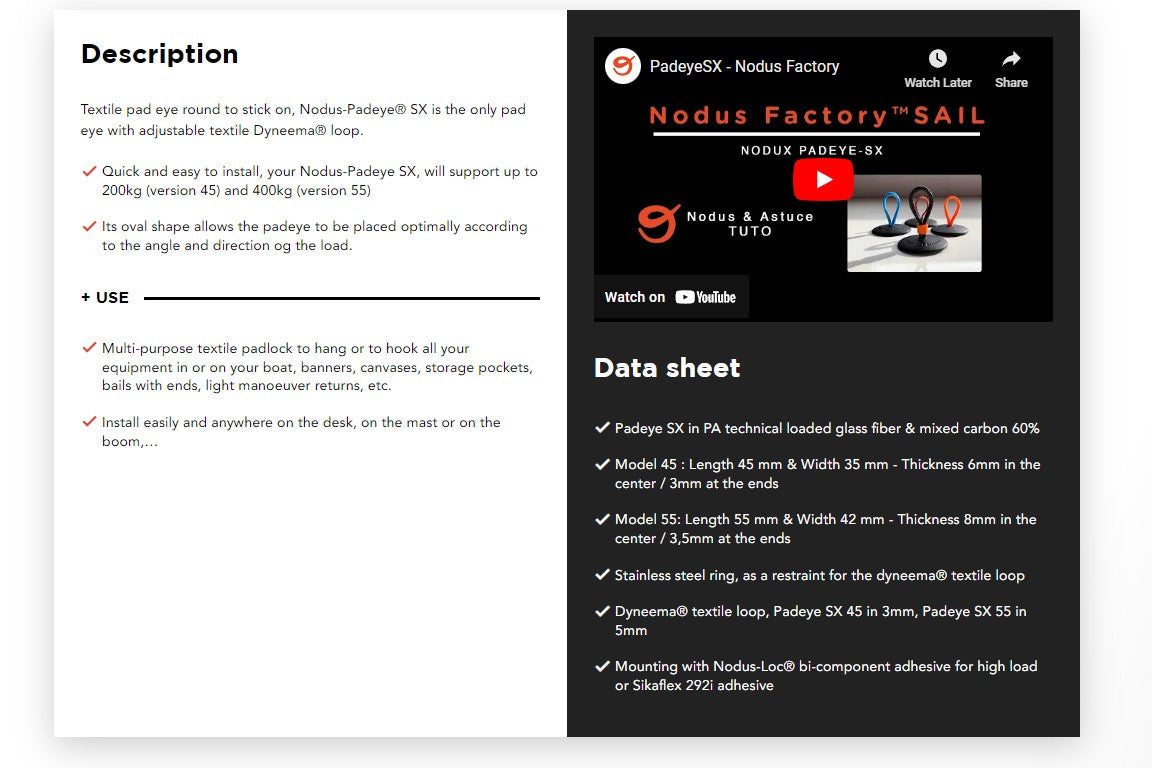

Description
- Quick and easy to install, your Nodus-Padeye SX, will support up to 200kg (version 45)
- Its oval shape allows the padeye to be placed optimally according to the angle and direction of the load.
+ USE
- Multi-purpose textile padlock to hang or to hook all your equipment in or on your boat, banners, canvases, storage pockets, bails with ends, light maneuver returns, etc.
- Install easily and anywhere on the desk, on the mast or on the boom,…
Data sheet

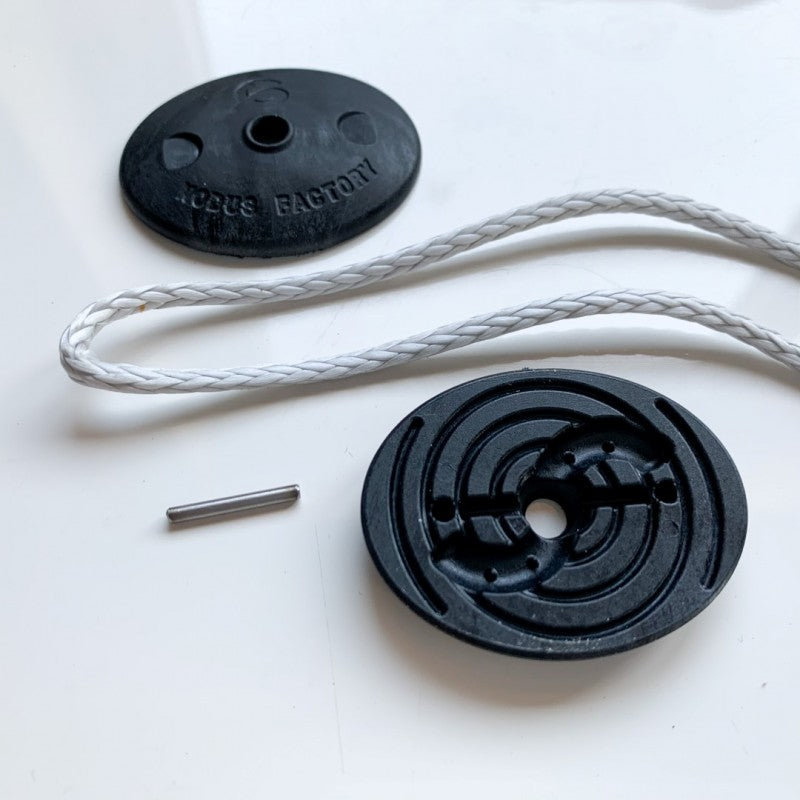

- Padeye SX in PA technical loaded glass fiber & mixed carbon 60%

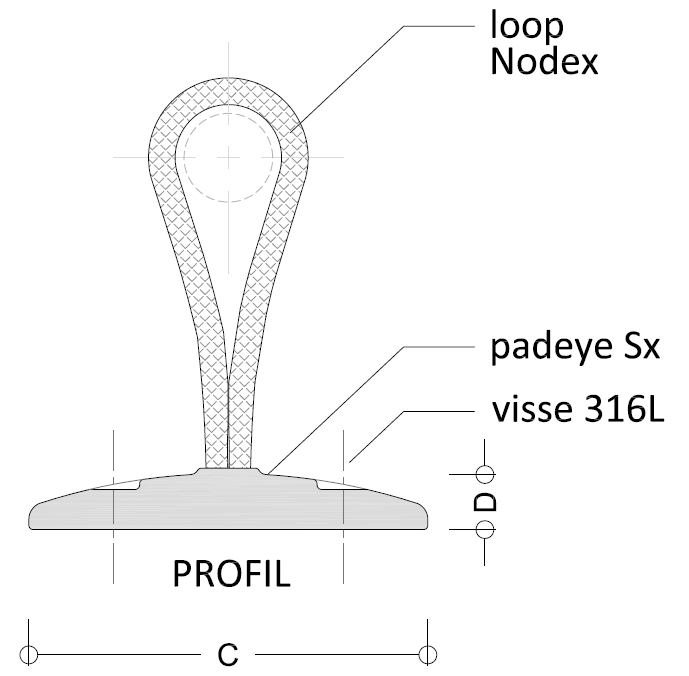

- Model 45 : Length 45 mm & Width 35 mm - Thickness 6mm in the center / 3mm at the ends
- Stainless steel ring, as a restraint for the dyneema® textile loop
- Dyneema® textile loop, Padeye SX 45 in 3mm
- Mounting with Nodus-Loc® bi-component adhesive for high load or Sikaflex 292i adhesive
Optional: Nodus Loc® glue - 1 tube (12ml) for 4 to 6 pads
PA / Dyneema® / fibrous bioplastic polyamide (recyclable)

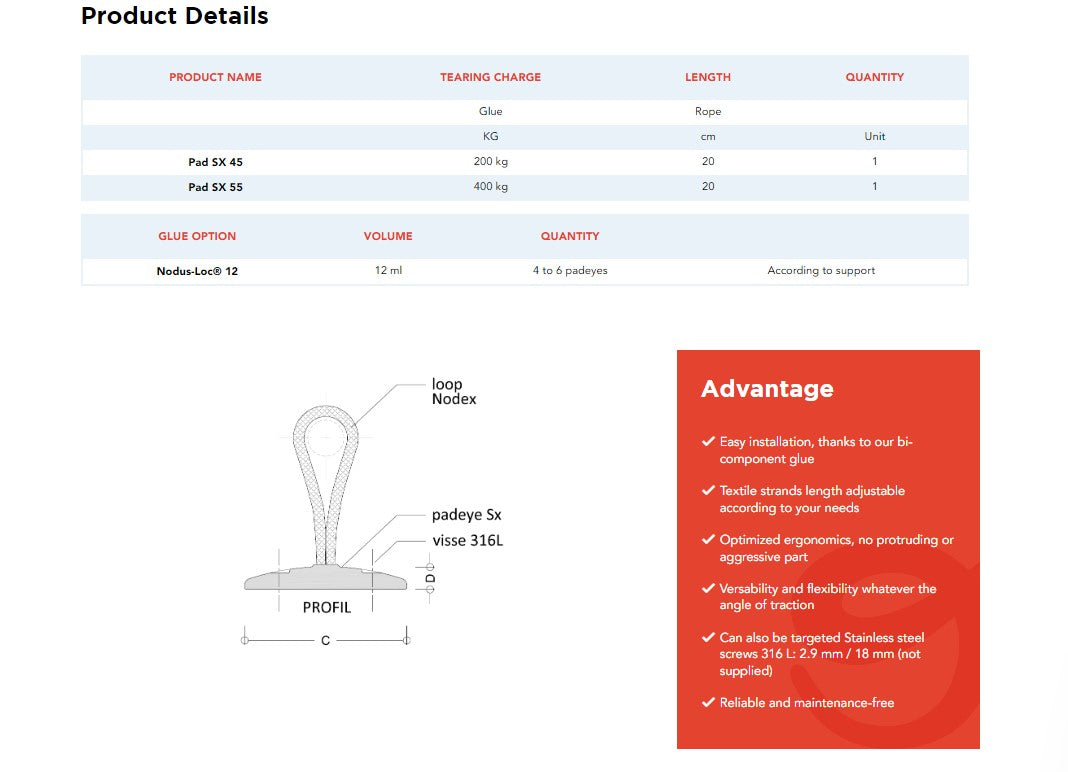

PRODUCT NAME | TEARING CHARGE | LENGTH | QUANTITY |
---|---|---|---|
Glue | Rope | ||
KG | cm | Unit | |
Pad SX 45 | 200 kg | 20 | 1 |
Pad SX 55 | 400 kg | 20 | 1 |
GLUE OPTION | VOLUME | QUANTITY | |
---|---|---|---|
Nodus-Loc® 12 | 12 ml | 4 to 6 padeyes | According to support |
