PUCK-2-W - 2-in-1 Transportation Marine & Automotive Antenna
PUCK-2-W - 2-in-1 Transportation & Automotive Antenna
2-in-1 Transportation & IoT/M2M Antenna; 617 - 4200 MHz; 2X2 LTE (MIMO), 6dBi
|COAX Cable Type - Black
|COAX Cable Length||2m|

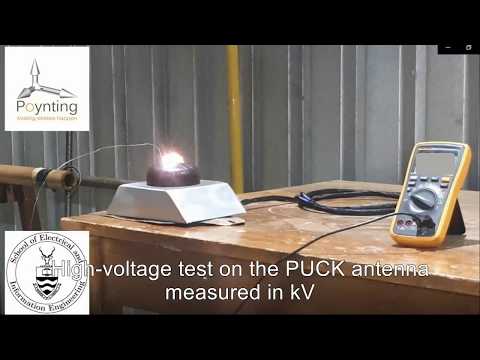

YouTube Videos Click here: Poynting Video
Poynting’s new PUCK antenna Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-2 consists of a 2-in-1 antenna system within a single housing, featuring 2×2 MIMO LTE/5G antennas (for 2G/3G/4G) that cover the 617 to 4200 MHz band which includes the most popular international LTE/5G bands. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.
