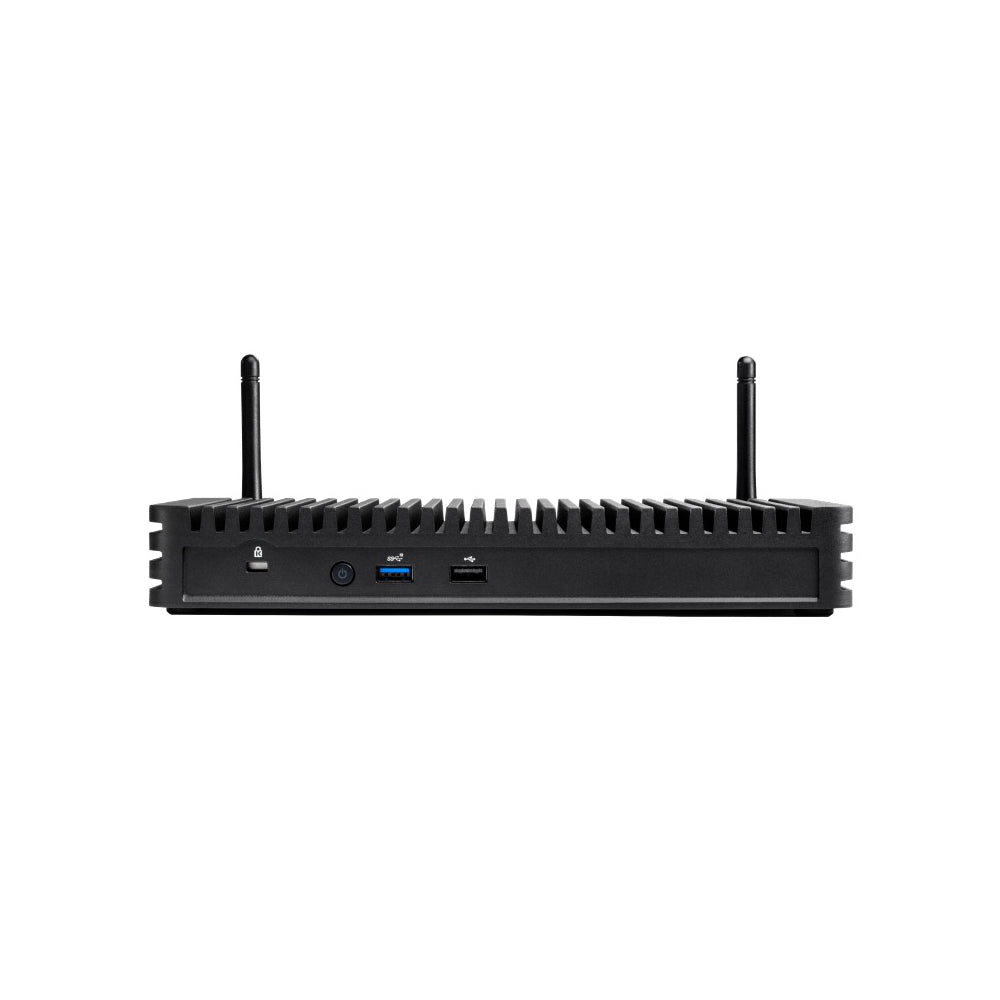

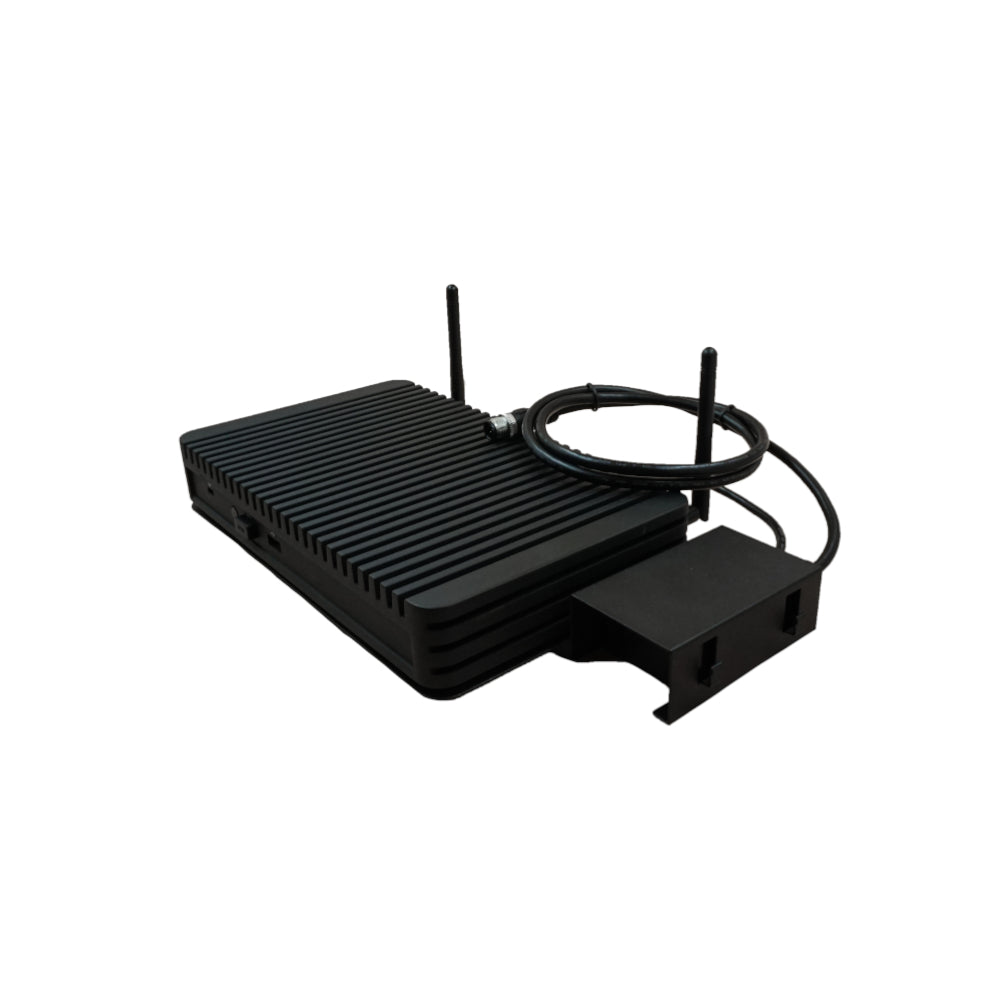

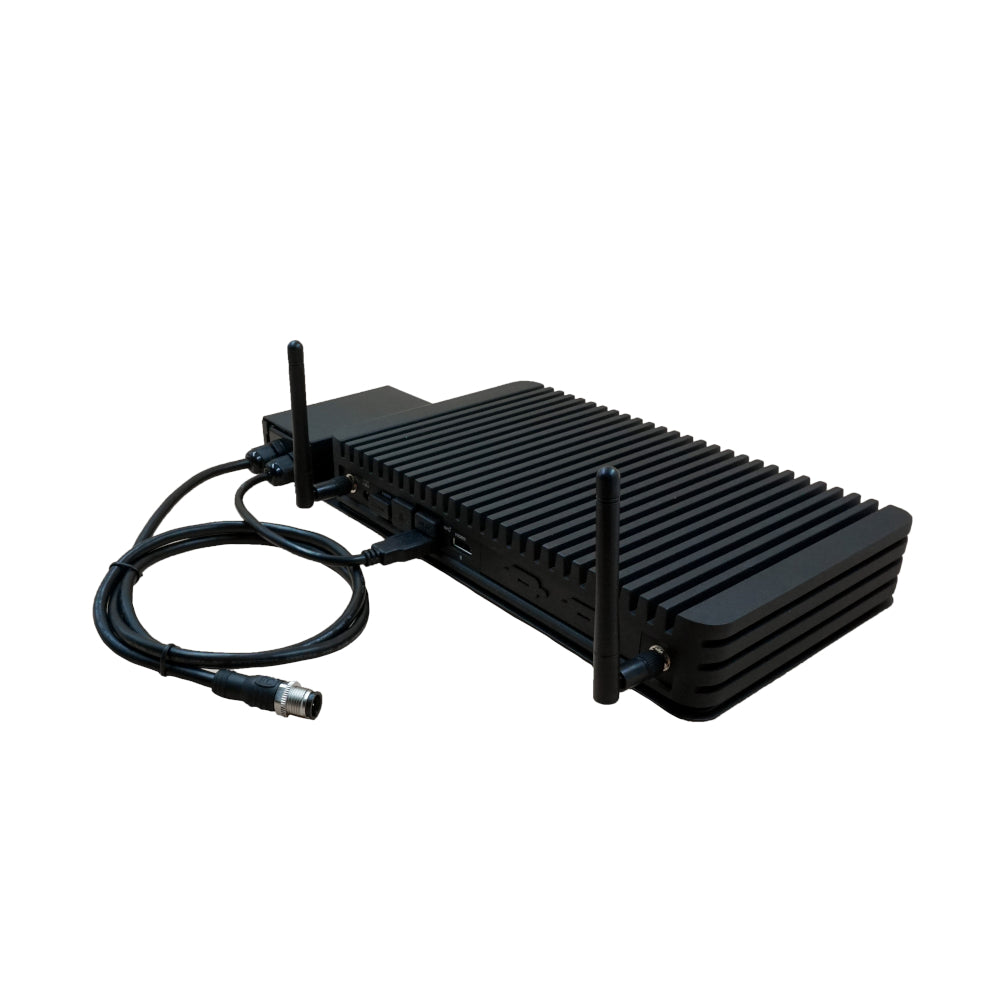

AquaNav Pro is a new member of the Digital Yacht Aqua PC family offering an ultra-rugged, totally solid state, fan-less marine PC system. Based on an Intel i3 processor and with Windows 10 as an operating system, it’s the perfect navigation and charting marine PC with fast graphics, low power consumption, direct DC operation, and an NMEA 2000 interface included for easy connection to modern GPS, AIS, and instrument systems.
It utilizes a 240GB SSD and has three spare external USB ports and a network port for external wired connectivity. There are built-in dual band Wi-Fi and Bluetooth plus support for two direct HMDI monitor/display connections.
SPECIFICATIONS
Ultra-rugged totally solid state and fan-less design optimized for charting and navigation operation
12V DC low power operation – typically 15-25W
Intel i3 processor, 4GM RAM with 240GB SSD
Dual HMDI video outputs
Integrated 2.4 & 5 GHz Wi-Fi
Integrated Bluetooth
Certified NMEA 2000 interface
3 x Spare USB ports and wired LAN port
Powers upon application of DC power allowing remote or hidden mounting
TECHNICAL SPECIFICATIONS
Power
Operating Temp
Physical
•10-19v DC (approx. 15-25W power draw) 24V option •-10 to +45 C •Dimensions : 250 x 40 x 180 mm •Weight 3 Kg •Depth 180mm (including the antennas)
External Ports
•4 x USB (One dedicated to NMEA 2000 interface) •1 x 10/100/1000MB network •2 x HMDI Video Out
