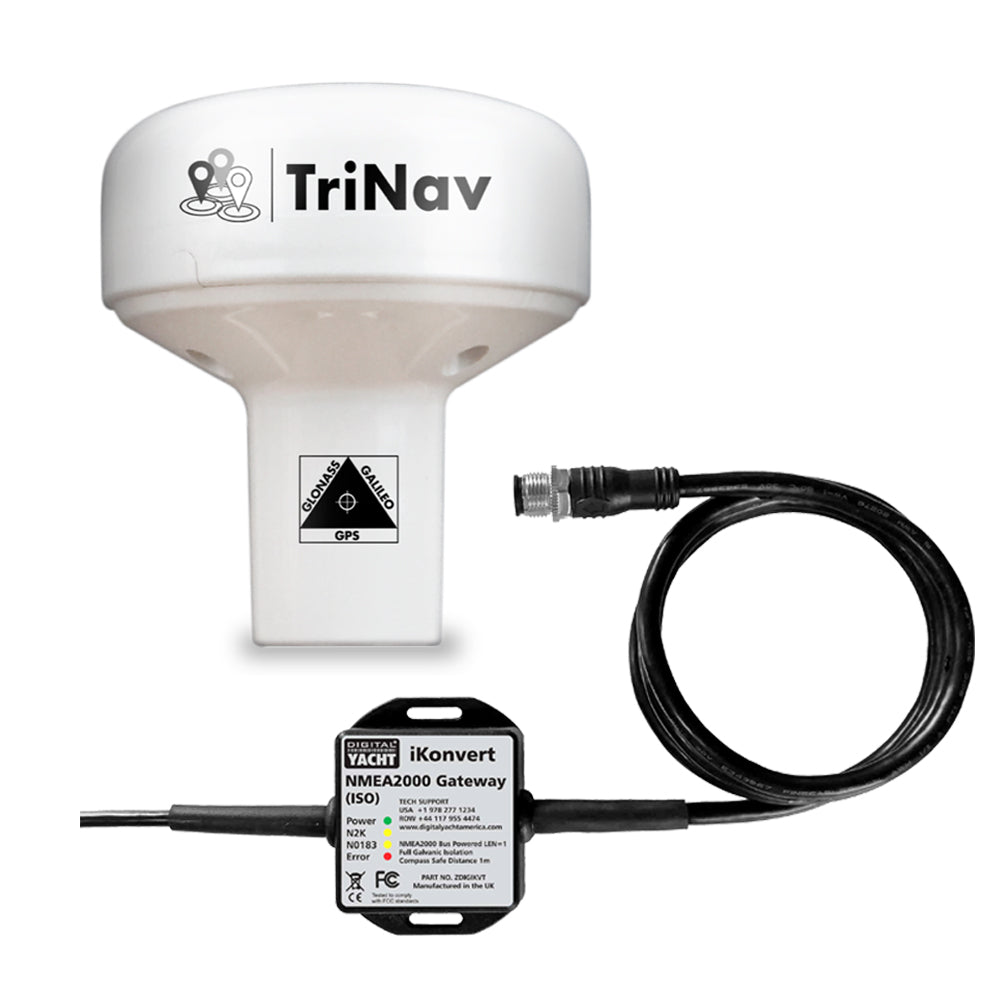

GPS160 NMEA 2000 VERSION WITH iKONVERT BUNDLE

Regular price
$429.95
Sale price
$429.95
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

KEY FEATURES
Digital Yacht has unveiled its TriNav™ GPS160, a GPS antenna with NMEA 2000. This is a new, high-performance positioning sensor using GPS, Glonass, and the new Galileo satellite systems. Therefore, providing exceptional position accuracy and redundancy. Typical accuracy is better than 3 ft. Data can also be set to output at up to 18Hz for smoother plotter track displays. TriNav™ software technology also improves positioning inaccuracy that could occur through spoofing and local interference. The GPS160 NMEA 2000 model features the GPS160 GPS antenna with an NMEA 2000 interface

The device has a variety of modes through field programming. This includes single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure, etc.

The GPS160 GPS antenna with NMEA 2000 version includes the Digital Yacht iKonvert NMEA 2000 gateway. This, therefore, allows an easy and flexible install of the NMEA 2000 without the need for cumbersome drop cables. It allows an easy and thin 10m cable to be run from the GPS160 to the nearest point on the NMEA 2000 backbone. Thus allowing the iKonvert to connect to it.

The GPS160 also supports a simple external MOB (man-over-board) switch or device. When triggered, the GPS160 creates a “synthesized” AIS SART MOB message on its NMEA output. This can then interface with a local plotter to identify the MOB. Most modern plotters support this with a clear MOB icon. As well as instant bearing and distance data to navigate to the casualty.

To learn how to wire the GPS16o to your navigation system click here

Galileo
Galileo is the new global navigation satellite system (GNSS) that has been in development over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is now fully operational as of 2020.

There are currently 22 satellites in usable condition. This means the satellite is working and adds to the service provision. There are then 2 satellites that are in “testing” and 2 more are marked as not available. The final constellation now consists of 30 satellites (24 operational and 6 spares) as of 2020.

Additionally, you can download the full info pack by clicking here.


SPECIFICATIONS
  • 72 channel GPS, Glonass, and Galileo GNSS positioning receiver
  • Supplied with iKonvert (NMEA2000-NMEA0183 converter) allowing easy and flexible NMEA 2000 installation
  • Typically sub 3 ft accuracy thanks to TriNav™ technology –combines all satellite data for optimum accuracy
  • Can be configured as a dedicated GPS, Glonass, or Galileo only device
  • Refined anti-spoofing algorithm for robust positioning performance and interference rejection
  • User/field can select 4800, 38400, and 115200 baud operation through simple internal DIP switches
  • Many formats of NMEA data output including datum information –user configurable through internal DIP switches
  • 33 ft cable
  • Up to 18Hz update rate (user can select)
  • Ultra-low (<20mA) power consumption at 12V DC
  • Input for MOB switch/system –when triggered generates synthetic AIS MOB NMEA output to activate MOB position on plotter
  • Efficient system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)
  • Puck installation or fits 3rd party industry standard 1” x 14TPI threaded mount
